Telecom Access Products

• AM-705 is smart OTT digital multimedia receiver with Android S.O and quad-core processor
• DRM: Verimatrix, PlayReady, Widevine
• DLNA, Airplay, Miracast
• Resolution: 1080i/p, 720p, 576i/p, 480i/p
• Video: H.265,H.264 AVC/VC-1,WMV/VC-S, AVS, Web MRMVB, MPEG1/2/4, H.263,DivX3/4/5/6, Xvid, Real Video 8/9/10,VP6,VP8
• Audio: MPEG1/2/2.5,Audio Layer  1/2/3,WMA Version 4/4.1/7/8/9, WMA Pro, PCM, Vorbis, Flac, ALAC, APE,AAC-LC,AAC-HE, Real Audio（AC-3 optional)
• Memory:
   – 1 GB DDR3
   – 4GB Flash
• Connectivity:
   – 1 x HDMI
   – 2 x USB 2.0
   – 1 x RJ45 Ethernet 10/100
• WiFi 802.11b/g/n 2.4GHz (5 GHz optional)

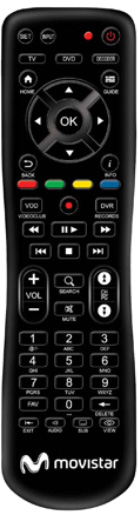

It allows you to control three devices: TV, DVD and Decoder with a single remote control.
• 50 key keyboard
• It operates with two 1.5V AAA batteries
• Battery life at least 1 year
• It incorporates a red LED indicator of low battery charge
• Operating distance up to 10 m in the horizontal plane
• Remote coverage angle (for a distance of 7m):
   – 20º Elevation
   – 25º Azimut
• Operating temperature range: 0ºC- 50ºC
• Dimensions: 200 x 54,3 x 27,3 cm
• Weight:100 gramos
• CE and RoHS

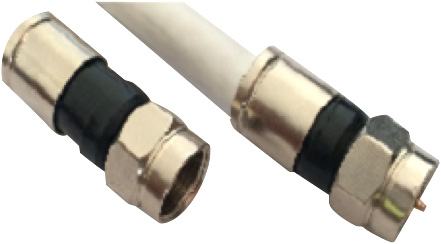

Compression connector for 90% shielded RG6 coaxial cable, working frequency up to 2.2 GHz. Designed for DTH TV reception facilities, low level of losses in the frequencies of the L band between 950 MHz and 2500 MHz.
• Ku Frequency Band from 10,7 to 12,75 GHz
• Cable retention force: 178N
• Tightening torque max. 6.8 N/m
• Insertion loss:
   – < 0,05dB @ 350 MHz
   – < 0,20dB @ 1000 MHz
   – < 0,50dB @ 2200 MHz
• Return loss: >30dB @2.2 GHz
• Armor:
   – >100dB @300MHz
   – >90dB @2,2 GHz
• Mesh contact resistance < 5mΩ. High corrosion resistance.

The LNB (Low Noise Block) is a low noise amplifier that receives the Ku-band signal from the Satellite reflected in the satellite dish, amplifies it and transfers it to the L-band to be conducted by coaxial cable to the user’s receiver.
• LNBs in KU band from 10,7 to 12,75 GHz
• Output frequencies from 950 to 2150 MHz
• Noise figure: 0,3 to 0,9 dB depending on models
• “Crospolar” isolation from 18 to 23 dB
• 50 to 60 dB conversion gain
• Supply voltage from 10V to 20V DC
• Output impedance 75 ohms, type F connector
• Operating temperature from -40 to 70ºC
• Available models:
   – Universal one and two outputs
   – Optimized 3 and 4 oscillators
• Amplifiers of remarkable electrical characteristics
• High performance / size ratio
• Great corrosion resistance in the open
• Mechanically very robust
• Optimized models can service multiple receivers with a single cable
